Best free serial port monitor for Windows?

Serial Communication
1

I’m working on debugging a flaky serial connection between custom hardware and a Windows PC, and I need a reliable, truly free serial port monitor to capture and analyze the COM traffic in real time. I’ve tried a couple of tools that were either too limited, had confusing interfaces, or turned out to be paid after a short trial. What free serial port monitoring software do you recommend that’s stable, feature‑rich (logging, filtering, hex view), and safe to use in a production environment?

2

For debugging flaky serial links on Windows, here is what tends to work well and stay free.

  1. Termite
    Super small, no install. Good for quick RX/TX testing. Hex view, logging to file, timestamps.
    Bad side: no driver level sniffing, so it will not monitor another app that already opened the port.

  2. RealTerm
    Old UI, but solid for weird protocols. Binary data, custom baud rates, logging, scripting.
    Still user level only. If your custom app owns COM3, RealTerm will not see the traffic.

  3. Portmon (Sysinternals, archived)
    Used to be the standard. Runs as a driver, can tap traffic to and from other processes.
    Problem: abandoned, flaky on modern Windows. On Windows 10 and 11 it crashes or fails to hook ports often.

  4. Free “sniffer” parts of paid tools
    Most decent monitors hide real features behind paywalls. Serial Port Monitor from Eltima is one of the few that has a usable trial that helps test driver level stuff. For long term use you want something more than a short trial, but for a quick deep debug it works fine. It hooks at driver level, so you see traffic from your production app in real time, can filter IRPs, view hex and ASCII at once, and export logs.

If you need a list of options and what each one does, this breakdown helps a lot:
free serial port monitor tools for Windows compared

Practical setup tips for your flaky link:
• Use one tool that owns the port (Termite, RealTerm) when you test the hardware directly.
• When you must watch your real app, move to a driver level monitor like Serial Port Monitor so you can tap the traffic without changing the app.
• Turn on timestamps with millisecond precision and log to file. That helps a ton with spotting timing issues and dropped bytes.
• Try different handshakes: None, RTS/CTS, DTR/DSR. Many “flaky” links are flow control mismatches.
• Fix the baud rate, data bits, parity, stop bits to match the MCU exactly. A single parity mismatch gives you random garbage and partial frames.

If you want pure free, I would start with RealTerm for direct tests and Portmon for older systems.
If you need reliable monitoring on modern Windows with another app already opening the COM port, Serial Port Monitor is the one that tends to work without wasting your time.

Best free serial port monitor for Windows?

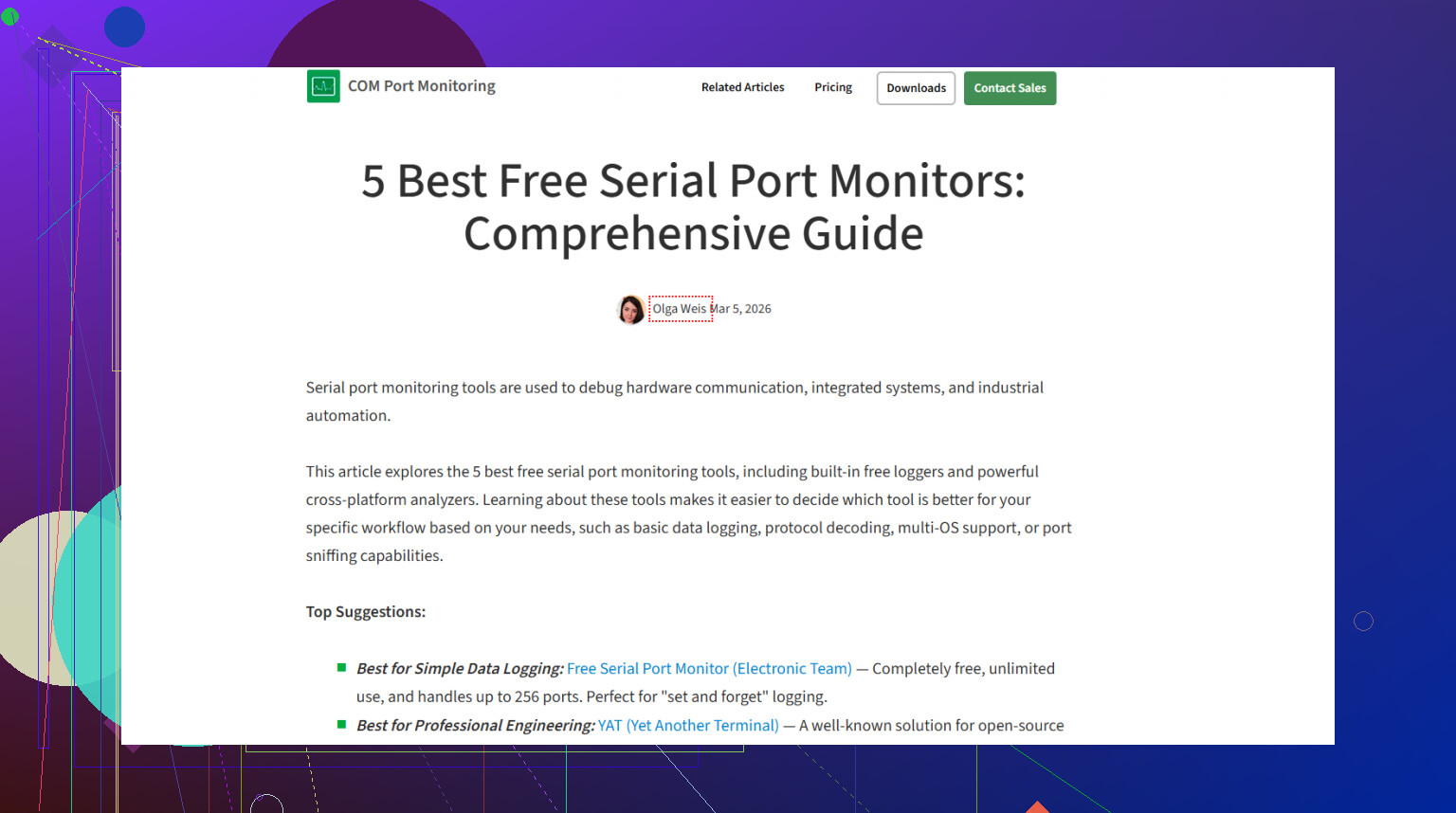

Best free serial port monitor for Windows?1536×858 201 KB

1 Like
3

@shizuka covered the usual suspects pretty well, but I’d look at it this way:

  1. Figure out what you actually need to see

    • If you just need to talk directly to the device (you own the COM port), any decent terminal is fine.
    • If you need to spy on traffic from an existing app without touching its code, you need a kernel / driver-level monitor.
    • If your link is flaky with timing issues, buffered logging and timestamps are way more important than a fancy UI.

  2. Direct‑connection tools (you open the port)
    Everyone always throws RealTerm and Termite around. They’re fine, but I’d add:

    • HTerm
      • Portable, easy to switch between text / hex.
      • Good for quick “is my framing/baud/flow control totally busted” checks.
      • Not a sniffer, same limitation: if your app has COM5 open, HTerm sees nothing.
    • PuTTY
      • Old but reliable for plain text protocols.
      • Useless if you need pretty hex or parsing, but it’s rock solid and tiny.

    For debugging a flaky line, I often start with HTerm or RealTerm, lock in baud/parity/stop bits, then hammer the link with known patterns to see if bytes go missing.

  3. Driver‑level monitoring on modern Windows

    This is where it gets ugly.

    • Portmon is nostalgic, but on Win10/11 it’s basically “will it BSOD or just silently do nothing today.” I don’t bother with it anymore. On a lab box with Win7 it’s still ok, but I wouldn’t base new work on it.

    Realistically, the one that actually works like you want on current Windows is Serial Port Monitor (Electronic Team).

    • It attaches at the driver level, so you can:
      • Watch your existing app’s traffic in real time.
      • See IRPs, hex/ASCII, set filters, and dump logs.
    • For sniffing a flaky link while the production app is running, this is the thing that saves your sanity.

    The catch: it’s not fully free forever. But if you need to quickly get to the bottom of a timing / framing / flow control issue, the trial is still more practical than wrestling abandoned tools.

  4. “Truly free” plus “sniff another process”

    That combo is very slim on Windows. You’re basically in one of these camps:

    • Use paid / trial driver-level tools like Serial Port Monitor for serious debugging, then uninstall.
    • Or accept user‑mode tools only and redesign tests so they own the port.
    • Or build/hack your own: a USB‑to‑RS‑232/TTL tap and log from a second PC. That’s not software‑free, but it’s cheap and bulletproof. For really flaky hardware links, I trust a second box with a dumb terminal more than any kernel hook.

  5. Physical + protocol sanity checks that catch “flaky” behavior

    Since you’re on custom hardware, this part often matters more than which program you use:

    • Double‑check ground and cable length. Long/noisy runs at high baud rates will act “random.”
    • Test at a lower baud rate (e.g. drop 115200 → 38400). If errors vanish, you’ve got SI / timing / noise issues, not software.
    • Turn on timestamps in whatever tool you’re using. Look for:
      • Regular gaps where nothing comes in.
      • Bursts where frames jam together with no delimiters.
    • Make sure your flow control settings match exactly. No flow control vs RTS/CTS mismatches are a super common cause of “it sometimes works” serial bugs.

  6. Good overview resource

    Since you asked about the best free serial port monitor for Windows, you might want a side‑by‑side comparison of the common tools, which ones are user‑mode, and which hook the driver stack. This breakdown is actually pretty good for getting the lay of the land:
    top free Windows serial monitoring tools compared

    It helps you quickly see which tools are terminals vs true sniffers and which are actually usable on current Windows builds.

4

If you really want “best free” plus “driver-level sniffing” on current Windows, you’ll hit the same wall @shizuka described, but I’d frame it a bit differently:

1. About that “truly free” requirement

I actually think chasing a 100% free driver-level tool on Win10/11 wastes more time than it saves. For flaky timing bugs, your time is worth more than the license. That said, you can still use a mix of free tools plus a focused use of a commercial one without turning your workflow into a sales funnel.

2. Serial Port Monitor: where it does make sense

Serial Port Monitor (Electronic Team) is still the most practical kernel-level monitor for modern Windows.

Pros:

  • Hooks at driver level so it can spy on another app’s COM traffic in real time.
  • Shows hex / ASCII / IRPs with filters and logging, which is invaluable for intermittent failures.
  • Timestamps and session logging are solid, so you can replay what happened around the glitch.
  • Works on current Windows without the weird instability and random failure you get with old tools.

Cons:

  • Not truly free long term. The free window is limited, so it is better for focused debugging sessions than ongoing monitoring.
  • UI is a bit heavy for simple “does this byte come out” tests. Overkill if you only need a dumb terminal.
  • You need admin rights and you are installing a driver, which some locked-down corporate PCs will not like.

3. What you can still do with only free stuff

Without repeating all the tools already mentioned, a few angles that complement them:

  • Use two different free terminals simultaneously on two separate USB‑serial adapters to compare traffic from device vs PC in a loopback or echo scenario. This isolates which side starts misbehaving.
  • If your hardware supports it, mirror TX or RX through a level shifter to a second COM adapter and log to a lightweight terminal that can timestamp every byte. Not as nice as a driver hook, but it is free and OS-agnostic.

The tradeoff is manual correlation: you align timestamps across logs to see when frames disappear or reorder. Slower than a dedicated sniffer, but if you are budget-locked it still gets you answers.

4. Why I sometimes disagree on sticking with user-mode tools

I do not fully agree with the idea that you can always redesign tests so your own tool “owns” the port. In real-world setups, there is often a legacy app you cannot recompile and must observe as-is. For those cases, I do not waste time: I go straight to Serial Port Monitor, capture a day’s worth of flaky behavior, then uninstall.

5. Practical recommendation for your case

  • Use a free terminal for quick link sanity checks and pattern blasting.
  • When the failure clearly depends on the real application’s behavior, bring in Serial Port Monitor for a short, focused capture window and get the real driver-level picture.
  • If the bug still looks random, add a second adapter and treat the serial line like a logic probe: record from the wire, not from Windows.

So instead of hunting a mythical permanent free driver-level monitor, accept that the free tools get you 80% there, and use Serial Port Monitor surgically for the last 20% where only a kernel hook will tell you what really happened.
